Manufacturing Plant, Food & Beverage Factory, Farms, Printing Shops, Construction works , Industrial Cooling Solutions
None
Provided
Provided
Hot Product 2019
1 Year
compressor
new
Water-cooled
China
LECH
380V/50HZ/3Phase
2000*750*1550mm
960 KG
1 Year
102
High Productivity
screw chiller
102KW
R22(or R407C/R404A)
HANBELL Semi-hermetic Screw
Shell Tube Condenser
Shell Tube
ALCO
Industrial Cooling Solutions
380V/50hz/3p
screw chiller
30HP SCREW COOLED CHILLER
| Model
Item | LC-30WS |
Band | |
| Power supply | 380V/3PH/50HZ |
| |
| Nominal cooling capacity | Kcal/h | 88000 |
|
| KW | 102 | ||
| USRT | 29 | ||
| Refrigerant | Name | R22(or R407C/R404A) | Import of high quality refrigerant |
| Refrigeration circuit | 1 | ||
| Throttling device | Control method | Thermostatic expansion valve |
|
| Compressor | Type | Semi-hermetic Screw | Hanbell(Taiwan) |
| Starting |
| ||
| Energy control | 33%-66%-100% | ||
| Input power(kw) | 23.3 | ||
| Rated current(A) | 39 | ||
|
Condenser | Type | Shell tube |
High efficiency external thread copper pipe shell and tube type |
| Water flow(m3/h) | 21.5 | ||
| Pressure loss(kpa) | 40 | ||
| Pipe specification(PT) | 3″ | ||
| Evaporator | Type | Shell tube | High efficiency internal thread copper pipe shell and tube type |
| Water flow(m3/h) | 17.5 | ||
| Pressure loss(kpa) | 60 | ||
| Pipe specification(PT) | 3″ | ||
| Safety device | Overload protection.high and low pressure protection.exhaust overheating protection.antifreeze protection.power inverse phase protection.hydraulic protection. | JAVE(Taiwan).ALCO(America). Schneider(France).Chint | |
| dB(A) | 55.0 | ||
| Dimension | LxWxH(mm) | 2000*750*1550 | Wooden case |
| Machine weight(kg) | 960 | ||
| Operating weight(kg) | 1100 | ||
Remark:
1.The capacity is according to the following parameters: ambient temperature:35 ° inlet/outlet chilled water temperature 12 ° C / 7 ° C
2.The specifications above are subject to change without notice.
3.Conversion of units:1kw cooling capacity=860kcal/hr
1RT=3024kcal/hr 1kcal/hr=3.969BTU/hr 1HP=0.735KW

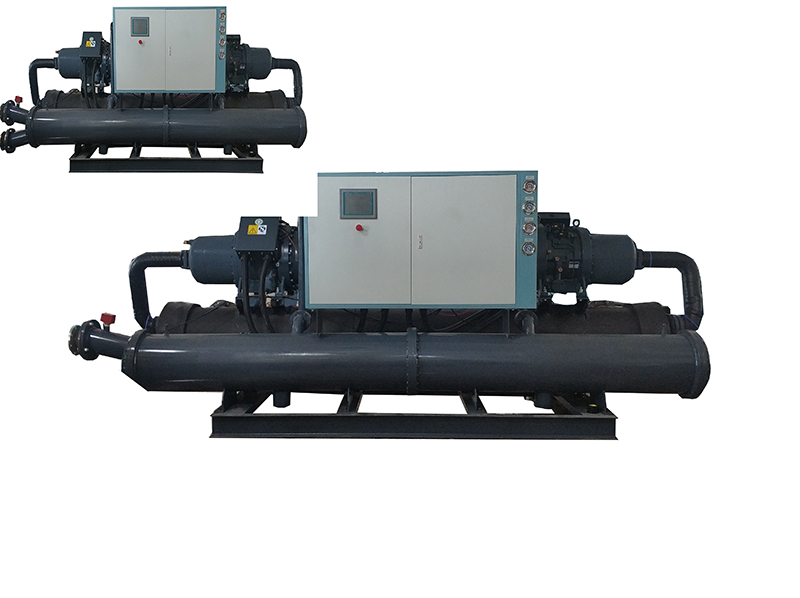

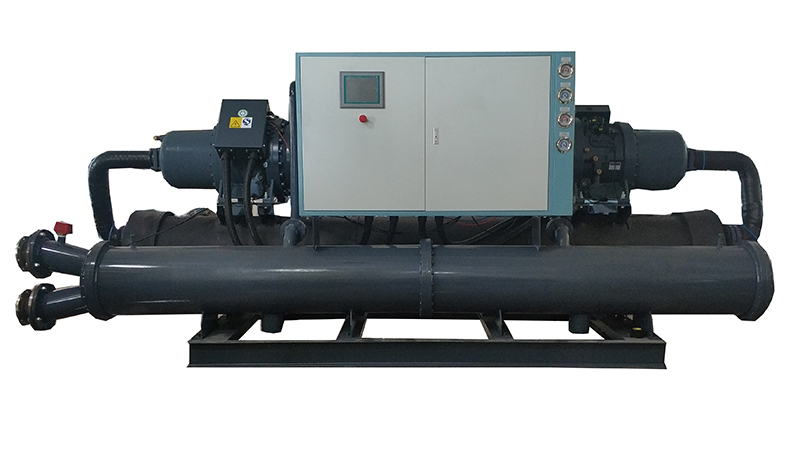

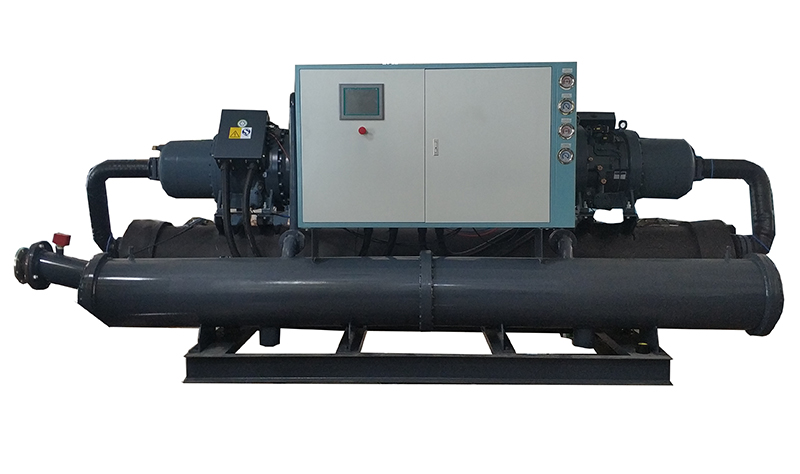

MACHINE PICTURES
OUR FACTORY
OUR CERTIFICATE
