Manufacturing Plant, Food & Beverage Factory, Farms, Printing Shops, Construction works
None
Provided
Provided
Hot Product 2019
1 Year
compressor
New100%
Water-cooled
Guangdong, China
Lechang
3PH 380V
870*550*1000
160 KG
1 Year
15KW
Sustainable
Water Cooled Chiller
15KW
R22(or R407C/R404A)
Copeland Scroll Compressor
Shell Tube Condenser
Tank
ALCO
Industrial Cooling Solutions
380V/50hz/3p

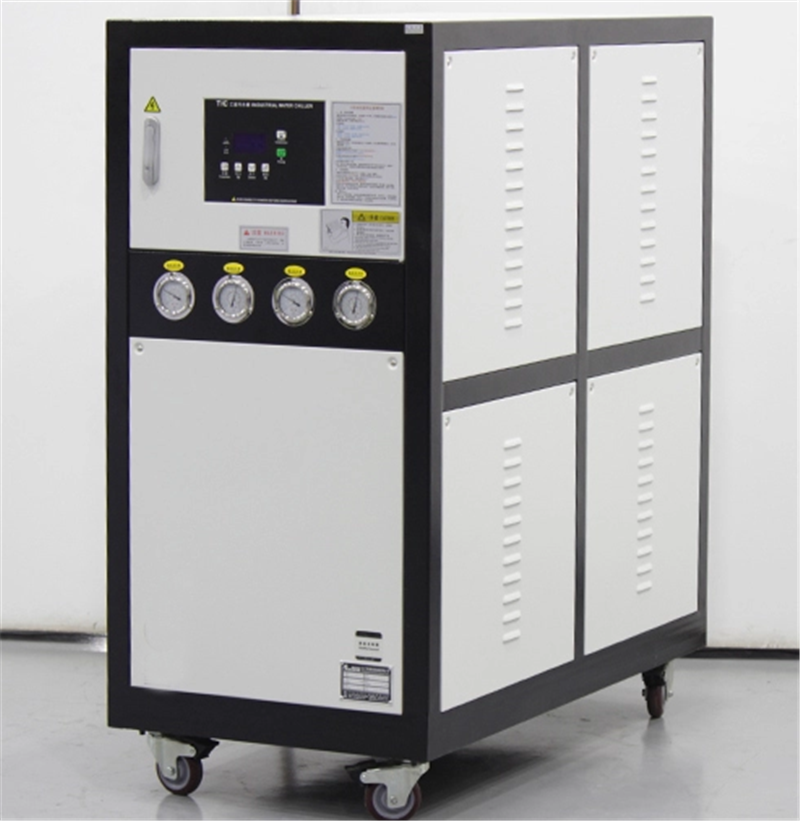

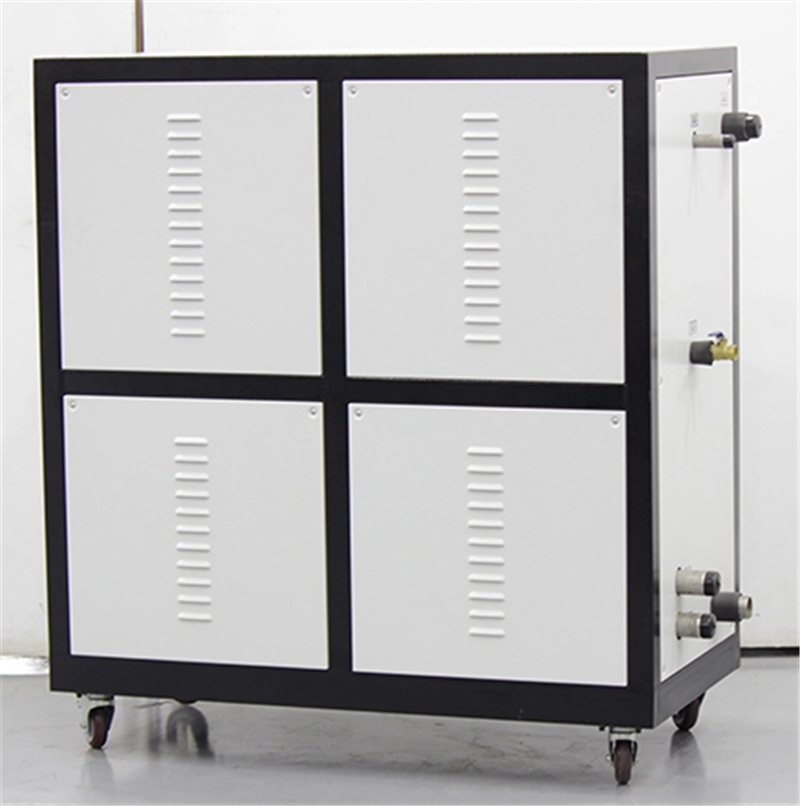

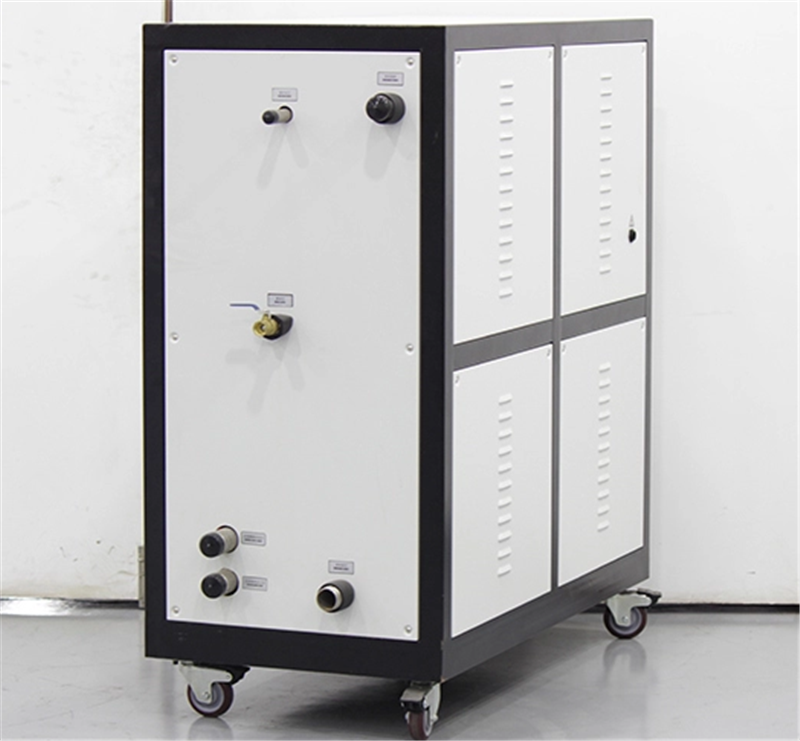

5HP water cooled chiller
| Model
Item | LC-05W |
Band | |
| Power supply | 380V/3PH/50HZ |
| |
| Nominal cooling capacity
| Kcal/h | 12900 |
|
| kw | 15 |
| |
| Refrigerant
| Name | R22(or R407C/R404A) | Import of high quality refrigerant
|
| Control method | capillary | ||
| Compressor
| Type | Scroll compressor | Copeland(America)
|
| Power(HP) | 5 | ||
|
Condenser
| Type | Shell tube | High efficiency Shell tube condenser
|
| Inlet and outlet pipe diameter(PT) | 1″ | ||
| Environment water Temp(dissipate heat) | ≤35℃ | ||
| Evaporator
| Type | Water tank with coil | Water tank with coil
|
| Chilled water flow (L/min) | 100 | ||
| Thank volume(L) | 60 | ||
| Inlet/out pipe(PT) | 1″ | ||
| Water pump
| Power(HP) | 0.5 | Muchuan |
| Lift(m) | 9 |
| |
|
Safety protection
| Control pane | Compressor overheating protection,over-current protection,high and low pressure protection,over temperature protection, flow switch protection,phase sequence or missing phase protection, exhaust overheating protection,antifreezing protection. | Punp |
| High/low pressure gauge | JAVE(Taiwan) | ||
| Filter | ALCO(America) | ||
| Relay | Schneider(France) | ||
| Contactor | Schneider(France) | ||
| Dimension
| weight(kg) | 160 | Wooden case |
| LxWxH(mm) | 870*550*1000 |
| |
|
| Surface treatment | Mainboard :2mm, closingboard: 1.5mm | Baking varnish |
Remark:
1.The cooling capacity is based on: chilled water inlet and outlet water temperature 12 ° C / 7 ° C, cooling inlet and outlet water temperature 30 ° C / 35 ° C
2.range of work:Chilled water(Temp range):5℃-45℃;inlet and outlet water(temp range) :3℃-8℃.working environment: ≤35℃(condensation Temp)
3.Conversion of units:1kw cooling capacity=860kcal/hr
1RT=3024kcal/hr 1kcal/hr=3.969BTU/hr 1HP=0.735KW
OUR FACTORY
OUR CERTIFICATE
FAQ
Q1:Are you a factory or trading company?
A:We are a factory and manufacturer specialized in cooled chiller more than 20 years, we provide wide range of industrial chillers available to suit any cooling need.
Q2:What's warranty and after-sale service of machine?
A:Twelve months Warranty for main machinery part like motor and electric;
Life-long maintenance service(Email and calling service in working hours)
Q3: How to install and run the machine?
A: Our technician have installed the machine before shipping.
Q4: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
· Our products manufactured strictly according to national and international standard.
· We have CE, ISO certification.
· We take a test on every product before shipping.
Q6:Whether the product can be customized?
· We can make products according to customer's requirements.
Q7:Don't know which type you need?
A:Please send us your requirement or contact us directly!
Q8:Don't know how the machine working?
A:Contact us to see the video and get further information!
