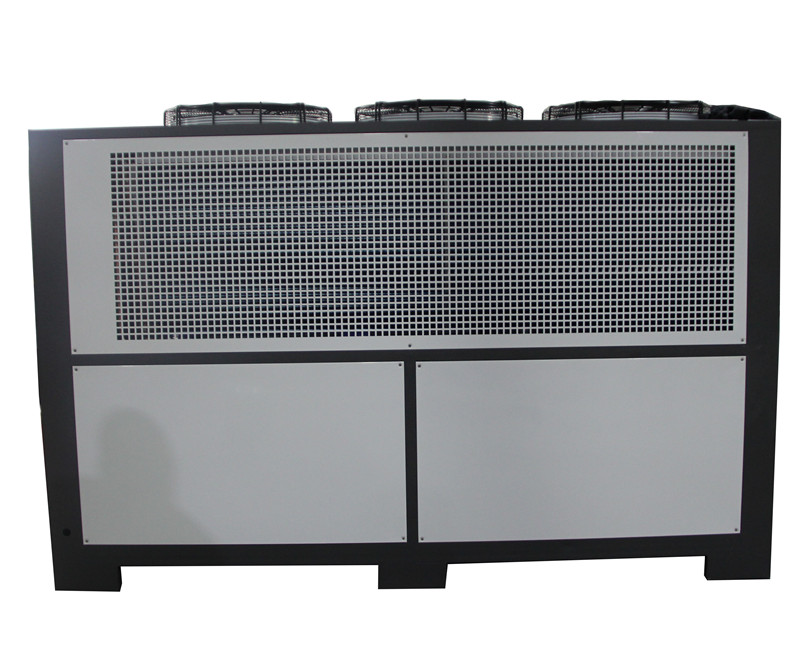

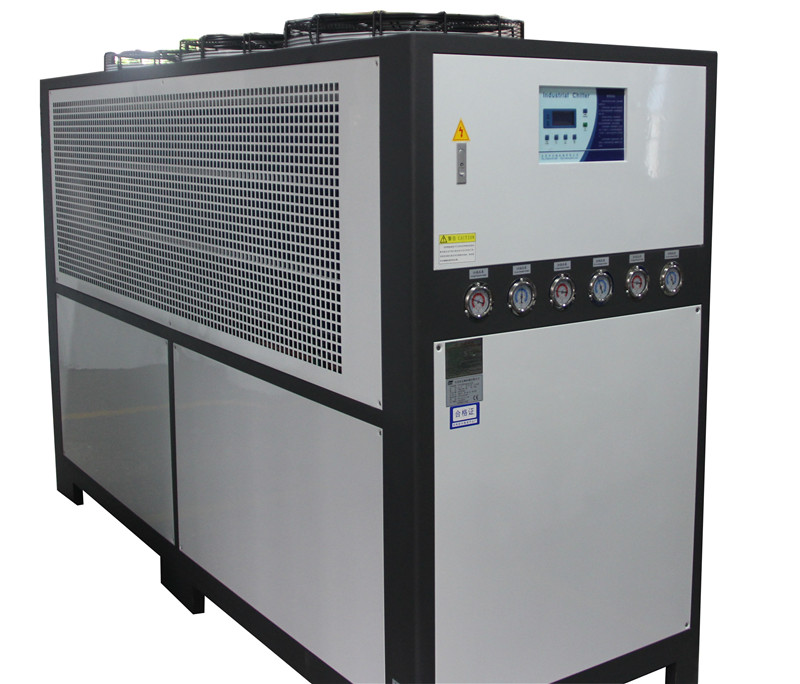

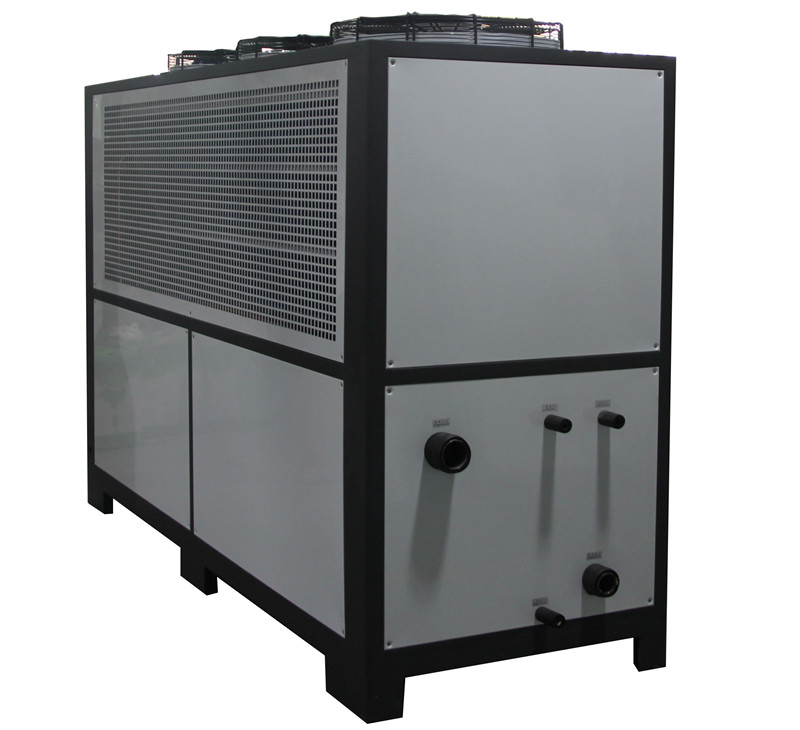

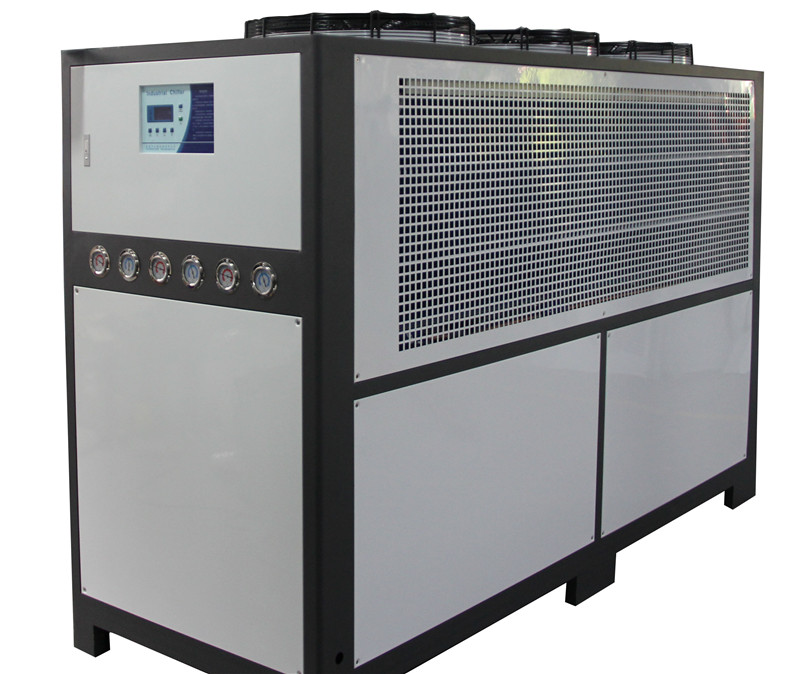

Factory supplier screw industrial chiller

Quantity:



Inquire Add to Basket

Applicable Industries:
Manufacturing Plant, Food & Beverage Factory, Farms, Printing Shops, Construction works , Industrial Cooling Solutions
Showroom Location:
None
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Hot Product 2019
Warranty of core components:
1 Year
Core Components:
compressor
Condition:
New100%
Type:
Water-cooled
Place of Origin:
China
Brand Name:
Lechang
Voltage:
3PH 380V
Dimension(L*W*H):
1300*650*1350
Weight:
430 KG
Warranty:
1 Year
Power:
30KW
Key Selling Points:
Competitive Price
Product name:
10HP water cooled chiller
Cooling capacity:
30KW
Refrigerant:
R22(or R407C/R404A)
Compressor:
Copeland Scroll Compressor
Condenser:
Shell Tube Condenser
Evaporator:
Tank
Filter:
ALCO
Application:
Industrial Cooling Solutions
Power Supply:
380V/50hz/3p
Keyword:
ChiIler

Product Description

10HP water cooled chiller

Model Item		LC-10W	Band
Power supply		380V/3PH/50HZ
Nominal cooling capacity	Kcal/h	25710
Nominal cooling capacity	kw	30
Refrigerant	Name	R22(or R407C/R404A)	Import of high quality refrigerant
Refrigerant	Control method	capillary	Import of high quality refrigerant
Compressor	Type	Scroll compressor	Copeland(America)
Compressor	Power(HP)	5*2
Condenser	Type	Shell tube	High efficiency Shell tube condenser
	Inlet and outlet pipe diameter(PT)	11/2″
	Environment water Temp(dissipate heat)	≤35℃
Evaporator	Type	Water tank with coil	Water tank with coil
	Chilled water flow (L/min)	200
	Thank volume(L)	145
	Inlet/out pipe(PT)	11/2″
Water pump	Power(HP)	1	Muchuan
Water pump	Lift(m)	13
Safety protection	Control pane	Compressor overheating protection,over-current protection,high and low pressure protection,over temperature protection, flow switch protection,phase sequence or missing phase protection, exhaust overheating protection,antifreezing protection.	Punp
	High/low pressure gauge		JAVE(Taiwan)
	Filter		ALCO(America)
	Relay		Schneider(France)
	Contactor		Schneider(France)
Dimension	weight(kg)	430	Wooden case
Dimension	LxWxH(mm)	13006501350
	Surface treatment	Mainboard :2mm, closingboard: 1.5mm	Baking varnish

Remark:

1.The cooling capacity is based on: chilled water inlet and outlet water temperature 12 ° C / 7 ° C, cooling inlet and outlet water temperature 30 ° C / 35 ° C

2.range of work:Chilled water(Temp range):5℃-45℃;inlet and outlet water(temp range) :3℃-8℃.working environment: ≤35℃(condensation Temp)
