Air cooled chiller use for injection machine

Quantity:
  • Manufacturing Plant, Food & Beverage Factory, Farms, Printing Shops, Construction works , Industrial Cooling Solutions

  • None

  • Provided

  • Provided

  • Hot Product 2019

  • 1 Year

  • compressor

  • NEW

  • Air-cooled

  • China

  • Lechang

  • 380V/50HZ/3PH

  • 1850*850*1750mm

  • 840 KG

  • 1 Year

  • 60KW

  • Competitive Price

  • 20HP air cooled chiller

  • 60kw

  • R22/R407C/R134A/R410A

  • CE

  • copeland

  • Finned copper tube+ low noise outer rotor fan

  • Tank

  • 0.7KW*2

  • industrial refrigeration

  • 380V/50HZ/3PH

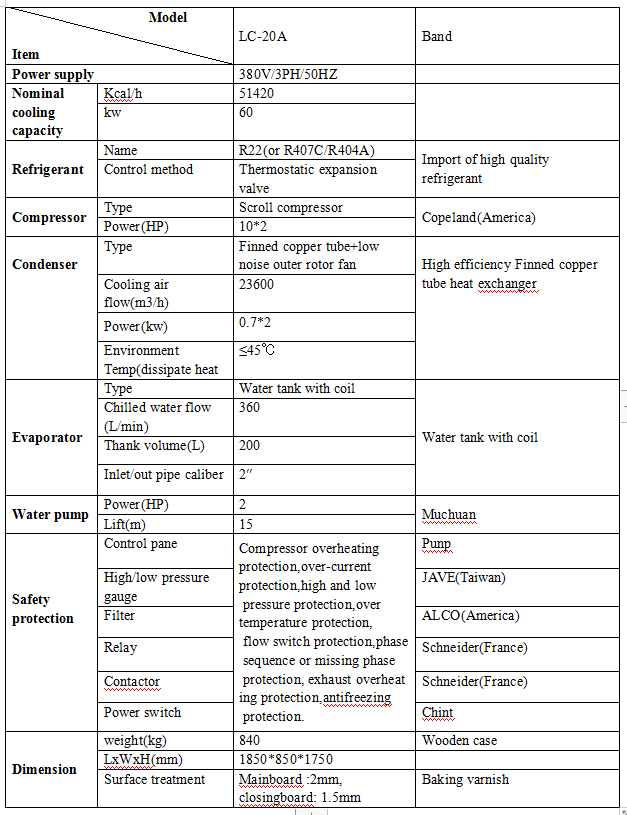

20HP Air cooled chiller

Remark:


1.The cooling capacity is based on: chilled water inlet and outlet water temperature 12 ° C / 7 ° C, cooling inlet and outlet water temperature 30 ° C / 35 ° C

2.range of work:Chilled water(Temp range):3℃-35℃;inlet and outlet water(temp range) :3℃-8℃.working environment: ≤35℃(condensation Temp)

3.Conversion of units:1kw cooling capacity=860kcal/hr

1RT=3024kcal/hr 1kcal/hr=3.969BTU/hr 1HP=0.735KW

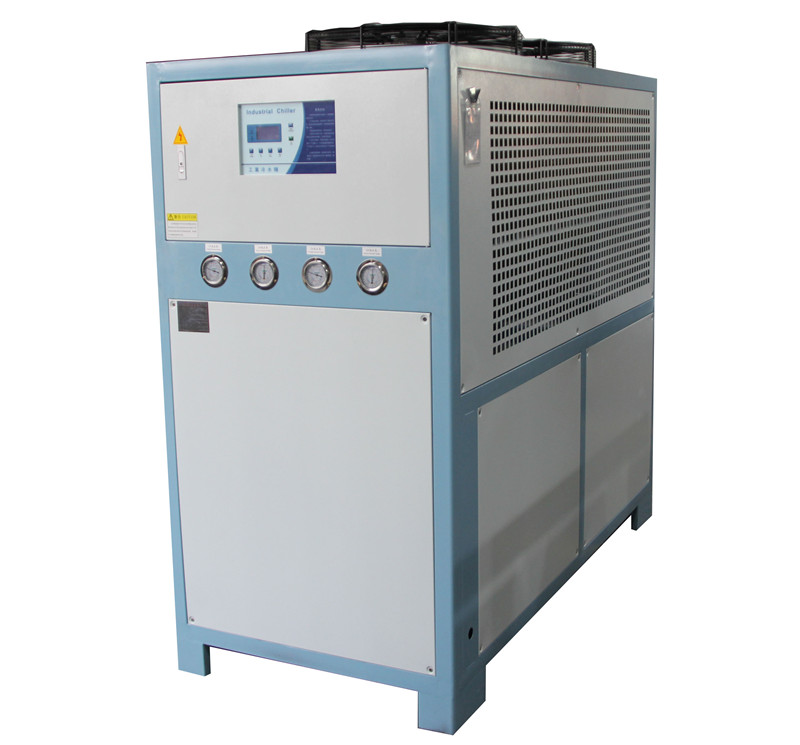

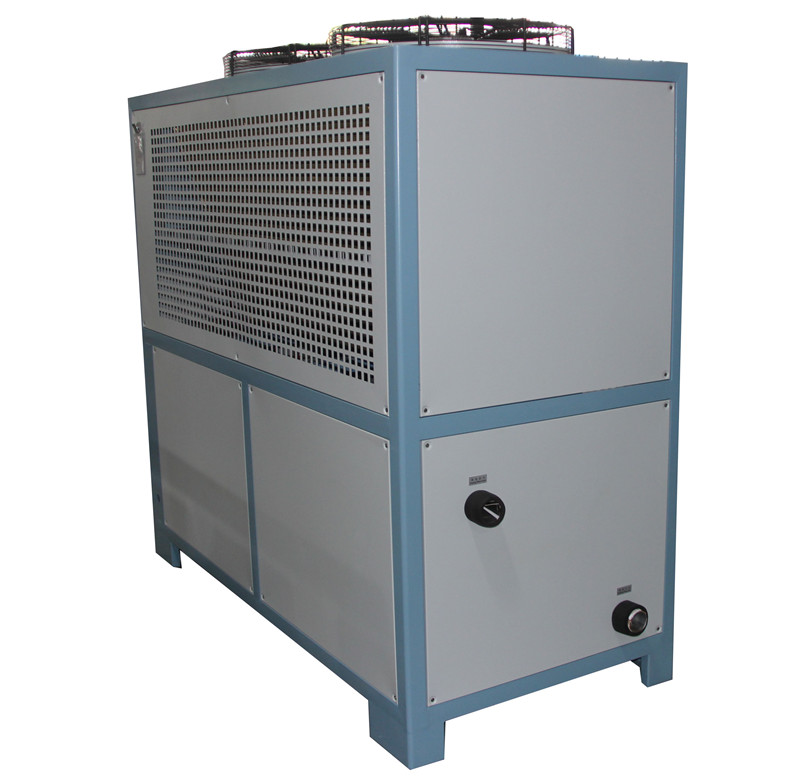

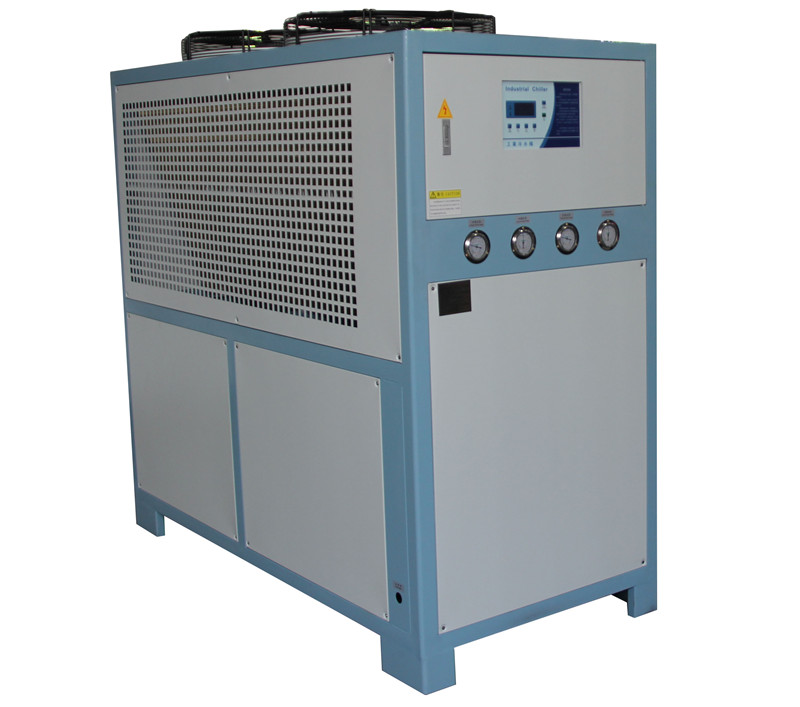

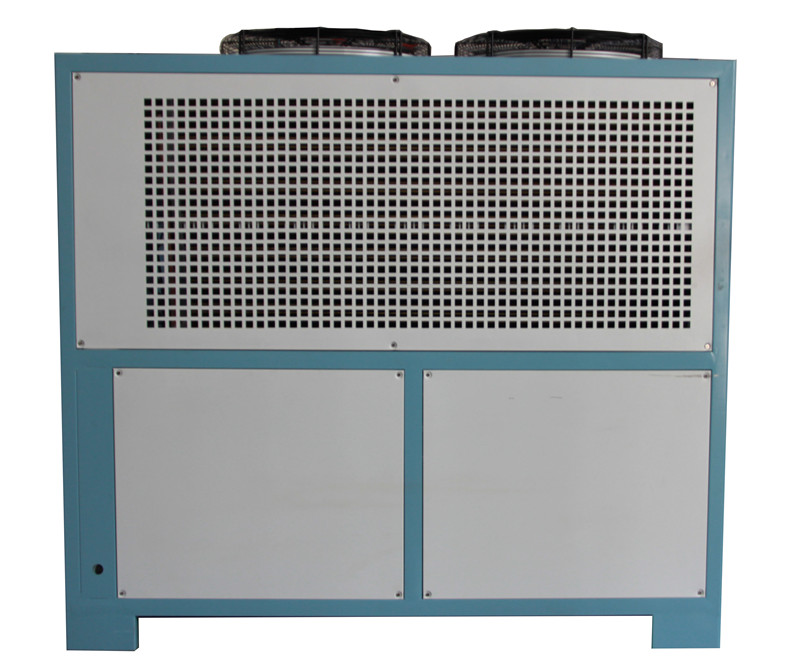

PRODUCT PICTURES

Air cooled chiller use for injection machine Air cooled chiller use for injection machine Air cooled chiller use for injection machine Air cooled chiller use for injection machine

OUR SUCCESS CASES

Air cooled chiller use for injection machine

Air cooled chiller use for injection machine

Air cooled chiller use for injection machine

Air cooled chiller use for injection machine OUR FACTORY

OUR CERTIFICATE

Air cooled chiller use for injection machine

Air cooled chiller use for injection machine

Air cooled chiller use for injection machine
